Various sizes of oil sheet durable easy to use inexpensive there are different models for different underlying use

Name: Various sizes of oil sheet durable easy to use inexpensive there are different models for different underlying use
Brand: baililai
Price: 1 USD

China Various sizes of oil sheet durable easy to use inexpensive there are different models for different underlying use wholesale

Brand Name : baililai

Model Number : PDC oil and gas composite sheet

Certification : 9001

Place of Origin : china

MOQ : 10

Payment Terms : T/T

Packaging Details : Plastic box packaging

Diameter : 6mm-25mm

Diamond thickness : 1.2mm-2.5mm

Process : High temperature sintering

Impact resistance : Excellent

Wear resistance : Excellent

Use : Suitable for complex formations, hard formations, heterogeneous formations and ultra-deep drilling strong abrasive formations.

Contact Now

Introduction:

PDC oil and gas composite sheet is a diamond powder and carbide substrate in a special way of assembly using advanced sintering technology, this product has excellent wear resistance, heat resistance and impact resistance, specifically designed for oil and gas drill bit manufacturing.

Product introduction:

The PDC composite sheet for oil and gas produced by our company uses high-quality Diamond powder as raw material, using unique Assembly methods and advanced sintering process, the diamond powder and cemented carbide substrates are sintered under ultra-high temperature and pressure conditions, and has reached the international advanced level in terms of physical mechanical properties such as wear resistance, heat resistance and impact resistance.

Product range	Product features	Scope of application
PDC-OG-1	Has good wear resistance, heat resistance and high impact resistance.	Suitable for soft to hard formation drilling.
PDC-OG-2	Excellent wear resistance, heat resistance and impact resistance.	It is suitable for deep drilling of complex strata, hard strata, non-homogeneous strata and strong abrasive strata.

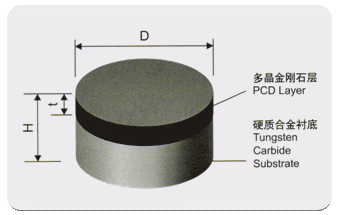

Specification table:

Specification	2513	2508	1919	1916	1913	1908	1619	1616	1613	1610	1608
D(mm)	25.40	25.40	19.05	19.05	19.05	19.05	15.88	15.88	15.88	15.88	16.00
H(mm)	13.20	8.00	19.00	16.31	13.20	8.00	19.00	16.00	13.20	10.00	8.00
t(mm)	2.0-2.5
Specification	1316	1313	1308	1304	1303	1011	1008	1004	0808	0803	0608
D(mm)	13.44	13.44	13.44	13.30	13.30	10.00	10.00	10.00	8.20	8.20	6.00
H(mm)	16.00	13.20	8.00	4.50	3.53	11.00	8.00	4.50	8.00	3.53	8.00
t(mm)	2.0-2.5
