Thermally Stable Polycrystalline Diamond Tools TSP Diamond Black Color

Thermally Stable PCD(TSP)

Introduction:

TSP polycrystalline Diamond is a combination of the diamond and the sintering agent at a high temperature and pressure from the diamond polymer, while due to the thermal expansion coefficient of the binding agent and Diamond close,so the heat-resistant temperature of 1200.C or so, TSP polycrystalline with high wear resistance, high thermal stability and dense and uniform structure.Widely used in the manufacture of petroleum, geological drill bit, Diamond processing and machining tools.

Product introduction:

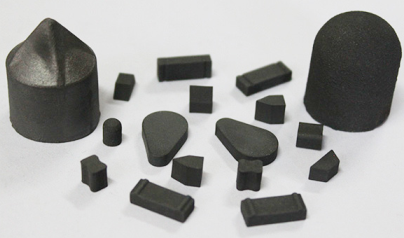

The company uses different formulations and processes, the high temperature and pressure of the drill bit made of fine poly crystal and poly crystal, it has a high abrasion ratio, and the use of cost compared to natural stone and very low, is the ideal material for the production of petroleum geological drill bit, it has been adopted by the major oil fields and drill manufacturers at home and abroad.Products can be processed into a variety of specifications, a variety of shapes(such as: cylindrical, conical, square, triangular and shaped polycrystalline) to meet the needs of our customers.

№	Shape	Specification	Size (mm)
1	Cylindrical D: diamond H: high	Minimum size:R1012 Maximum size:R18832	1.0×1.2 18.8×3.2
2	Conical. D: diamond H: high	Minimum size:R1012120° Maximum size:R18832120°	1.0×1.2 18.8×3.2
3	Square. L: long W: wide T: thickness	Minimum size:L151515 Maximum size:L100100200	1.5×1.5×1.5 10×10×20
4	L,B: Foreman T: thickness	Minimum size:T30303026 Maximum size:T70707050	3.0×3.0×3.0×2.6 7×7×7×5
5	L: long H: high W: wide R: Arc degree	Minimum size:A100303015 Maximum size:A1001005025	10×3×3×R1.5 10×10×5×R2.5

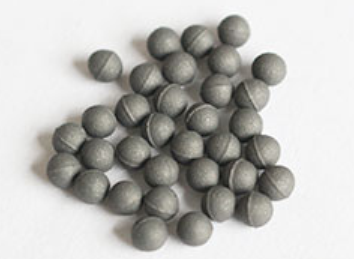

6	Spherical.
7	Other abnormals

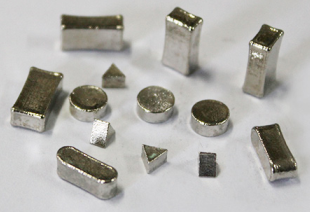

8	Coating Ni/Ti

pdc diamond

polycrystalline diamond cutters

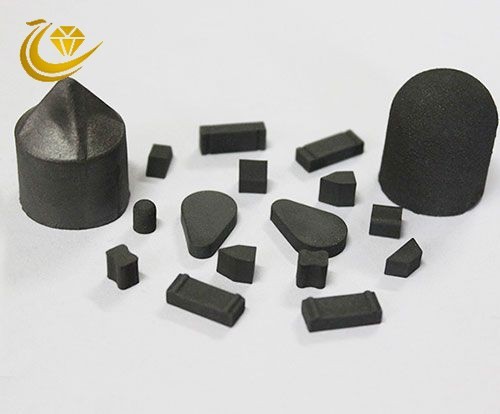

Thermally Stable Polycrystalline Diamond Tools TSP Diamond Black Color Images
