Compact Small PCD Diamond Tools PCD Die Blanks TCD Series Corrosion Resistance

PCD Blanks For Wire Drawing Dies TCD series

Introduction:

PCD Diamond wire drawing die blank is a diamond powder under the action of binding Agent, high temperature and pressure sintering process.In the sintering process, the formation of high-strength Diamond bond between Diamond microcrystalline particles, the diamond powder particles strongly bonded together to form polycrystalline Diamond (PCD).PCD Diamond wire drawing die blank, both high wear resistance, hardness and thermal conductivity, but also has good mechanical strength and toughness, suitable for drawing copper, aluminum, nickel, tungsten and other non-ferrous metals, stainless steel and various alloy wire rod pipe.

Product introduction:

Our company PCD wire drawing die blank is divided into TCD, CD and SD three series, according to the needs of drawing applications, each series has 1 micron, 3 micron, 5 micron, 10 micron, 15 micron and 2 O micron size of wire drawing die blank for users to choose

TCD series

Features: Diamond powder in the cobalt-based binding Agent under high temperature and pressure process Diamond powder and carbide support ring closely sintered as a whole, by the support ring to improve the crack strength of the mold, so this type of product can withstand higher strength and speed drawing, drawing high finish, TCD series mold blank to be below 650℃inlay sleeve, Electric spark, laser and ultrasonic drilling and other methods.

Use: suitable for high-speed drawing copper, aluminum, nickel, tungsten and other non-ferrous metals, stainless steel and all kinds of alloy wire rod and other hard materials and thicker materials.

Specifications table:

ADDMA

Product Code

Size(mm)

Grit (μm)

Diagram

Name

Mould blank

Diamond diameter

Diamond thickness

Maximum recommended Aperture

Φd

T

Outer Diameter

ΦD

1

3

5

10

15

25

TCD series

T12

TCD4015

8.12

4

1.5

1

○

●

●

●

●

●

T15

TCD4023

8.12

4

2.3

1.8

○

●

●

●

●

●

T18

TCD4029

8.12

4

2.9

2.3

○

●

●

●

●

●

T21

TCD7040

13.65

7

4

3.5

﹣

●

●

●

●

●

T24

TCD7053

13.65

7

5.3

4.6

﹣

●

●

●

●

●

T27

TCD13086

24.13

13

8.6

5.8

﹣

﹣

●

●

●

●

T30

TCD130116

24.13

13

11.6

7.8

﹣

﹣

○

●

●

●

T31

TCD150120

24.13

15

12

9

﹣

﹣

﹣

○

●

●

T33

TCD150150

26.8

15.2

15

10

﹣

﹣

﹣

﹣

●

●

T33

TCD180150

29

18.5

15

11

﹣

﹣

﹣

﹣

●

●

TCD180180

29

18.5

18

12

﹣

﹣

﹣

﹣

●

●

TCD250180

36

25

18

14

﹣

﹣

﹣

﹣

○

○

TCD300200

41

30

20

16

﹣

﹣

﹣

﹣

○

○

CDR series (round)

D6

CDR2510

2.5

1

0.4

○

●

●

●

●

●

D12

CDR3215

3.2

1.5

1

○

●

●

●

●

●

D15

CDR5225

5.2

2.5

1.5

○

●

●

●

●

●

D18

CDR5235

5.2

3.5

2

○

●

●

●

●

●

D21

CDR8040

8

4

3

﹣

●

●

●

●

●

D24

CDR9853

9.8

5.3

4

﹣

●

●

●

●

●

D27

CDR13085

13

8.5

5

﹣

﹣

○

●

●

●

D30

CDR160120

16

12

7

﹣

﹣

○

●

●

●

D33

CDR180120

18

12

8

﹣

﹣

○

●

●

●

D33

CDR180150

18

15

8.5

﹣

﹣

○

●

●

●

CDR220100

22

10

9

﹣

﹣

○

●

●

●

CDR220150

22

15

9.5

﹣

﹣

○

●

●

●

CDH series (square)

D6

CDH2510

2.5

1

0.4

○

●

●

●

●

●

D12

CDH3215

3.2

1.5

1

○

●

●

●

●

●

D15

CDH5225

5.2

2.5

1.5

○

●

●

●

●

●

D18

CDH5235

5.2

3.5

2

○

●

●

●

●

●

SDR series (round)

SDR220140

22

14

11

-

-

-

-

●

●

SDR240160

24

16

12

-

-

-

-

●

●

SDR260160

26

16

13

-

-

-

-

●

●

SDR280160

28

16

14

-

-

-

-

●

●

SDR300180

30

18

15

-

-

-

-

●

●

SDR320180

32

18

16

-

-

-

-

●

●

Description:

1) ● stock products ○ order products

2) The maximum recommended pore size for non-ferrous metal wire, hard line diameter can not exceed 65% of the recommended pore size.

pcd cutting tools

polycrystalline diamond pcd tools

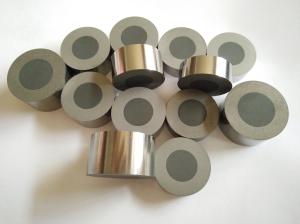

Compact Small PCD Diamond Tools PCD Die Blanks TCD Series Corrosion Resistance Images
