AC Series Rough Industrial Diamonds , Synthetic Gem Diamonds High Performance

Name: AC Series Rough Industrial Diamonds Synthetic Gem Diamonds High Performance
Brand: Henan Baililai Superhard Materials Co., Ltd.
Price: 1 USD

China AC Series Rough Industrial Diamonds , Synthetic Gem Diamonds High Performance wholesale

Brand Name : Henan Baililai Superhard Materials Co., Ltd.

Model Number : Resin binder synthetic diamond AC series

Certification : Henan Baililai Superhard Materials Co., Ltd.

Place of Origin : Henan China

Packaging Details : 4-layer packaging bag upside down head packaging, label affixed to the outermost layer

Product name : Resin binder synthetic diamond AC series

Sample : According to customers to choose

Size : 50/60-500/600

color : black

Application : Abrasive refractory Industry

Contact Now

Resin binder synthetic diamond AC series

Introduction:
Resin binder synthetic diamond is a polycrystalline Diamond superhard abrasive, widely used in the production of resin binder Diamond grinding wheel.Polycrystalline Diamond is composed of several sub-crystal structures with irregular crystal form, rough surface, excellent brittleness and superior self-sharpening, its high grinding efficiency, high service life and high finish quality, for grinding tungsten carbide, silicon nitride, alumina, silicon carbide, glass, glass and ceramics and other non-ferrous materials to provide the best performance.
Specifications table:

Size Grade	50/60	60/70	70/80	80/100	100/120	120/140	140/170
AC4	Y	Y	Y	Y	Y	Y	Y
AC6	Y	Y	Y	Y	Y	Y	Y
RVD	Y	Y	Y	Y	Y	Y	Y
Size Grade	170/200	200/230	230/270	270/325	325/400	400/500	500/600
AC4	Y	Y	Y	Y	Y	Y	Y
AC6	Y	Y	Y	Y	Y	Y	Y
RVD	Y	Y	Y	Y	Y	Y	Y

Comparison table:

BAILILAI GB/T6406-1995	USA ANSI US Mesh #	EC FEPA D	International standards ISO	Russia GOST9206-80
50/60	50/60	D301	300/250	315/250
60/70	60/70	D251	250/212	250/200
70/80	70/80	D213	212/180
80/100	80/100	D181	180/150	200/160
100/120	100/120	D151	150/125	160/125
120/140	120/140	D126	125/106	125/100
140/170	140/170	D107	106/90	100/80
170/200	170/200	D91	90/75
200/230	200/230	D76	75/63	80/63
230/270	230/270	D64	63/53	63/50
270/325	270/325	D54	53/45	50/40
325/400	325/400	D46	45/38	45/38
400/500	400/500	D39	38/32	38/30
500/600	500/600	D33	32/26	30/20

Product Tags:

lab synthetic diamonds

rough industrial diamonds

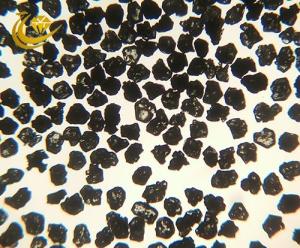

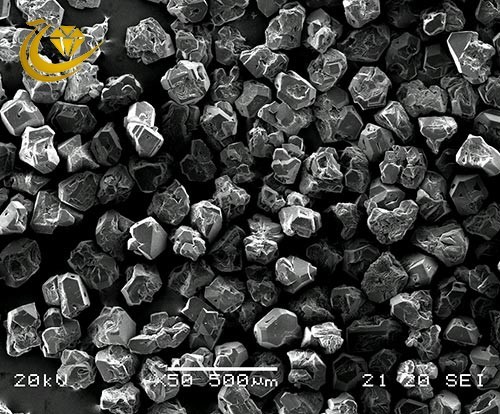

AC Series Rough Industrial Diamonds , Synthetic Gem Diamonds High Performance Images
