Introduction:
Diamond single wafer has high hardness, good wear resistance, impact toughness, good thermal conductivity, high finish, and non-ferrous metal friction coefficient is low, good adhesion resistance and excellent thermal stability and chemical stability, can grind extremely sharp edge, is the most ideal ultra-precision cutting tool material.
Product introduction:
The main features:
Diamond single wafer has high hardness, good wear resistance, impact toughness, good thermal conductivity, high finish, and non-ferrous metal friction coefficient is low, good adhesion resistance and excellent thermal stability and chemical stability, can grind extremely sharp edge, is the most ideal ultra-precision cutting tool material.As the tool material, its performance is far more than carbide, Diamond composite sheet and other cutting tool material, with natural diamond cutting tool material comparable to the new era of cutting tool material.
Application areas:
Diamond single wafer is the ideal material for precision machining in automobile, machine tool, bearing, tool, hydraulic and other industries; also used in aerospace, optical materials, jewelry processing, watches, instruments, instrument manufacturing, fiber optic cable infrared and other high-tech fields.
Main uses:
1, metal processing:cast iron disc grinding；
2, non-ferrous metal turning such as; Gold, Silver, Aluminum, aluminum, copper, etc.；
3, non-ferrous, non-metallic materials cutting tools: optical materials, ceramics, various fiber and particle reinforced composite materials, plastic, rubber, graphite, glass and a variety of wear-resistant wood (solid wood, plywood, MDF and other composite materials)；
4, grinding wheel Dressing pen；
5, wear parts；
6, a variety of special tools, grinding tools such as: forming knife, grinding wheel knife, turning knife, turning knife, Diamond pen, carving knife, batch knife, angle knife, elastic knife, sharp knife, knife and other tools；
7, single crystal drawing die；
8, cutting flat glass (such as mobile phone screen, etc)；
Depending on the direction of the crystal, size, thickness, purity, the number of right angles and the range of applications, we can provide square, rectangular, round, and triangular specifications.
 | SCDP-A: observed under a microscope without any inclusions. |
 | SCDP-B: observed under a microscope to see trace inclusions. |
 | SCDP-C: in the light observation can see a small number of inclusions. |
Specifications table:
| Grade Specifications, MM | SCDP-A1 | SCDP-A2 | SCDP-B1 | SCDP-B2 | SCDP-C1 | SCDP-C2 |
| 2.5*2.5*1.0 | Y | Y | Y | Y | Y | Y |
| 3.0*3.0*1.0 | Y | Y | Y | Y | Y | Y |
| 3.5*3.5*1.0 | Y | Y | Y | Y | Y | Y |
| 4.0*4.0*1.0 | Y | Y | Y | Y | Y | Y |
| 4.5*4.5*1.0 | Y | Y | Y | Y | Y | Y |
| 5.0*5.0*1.0 | Y | Y | Y | Y | Y | Y |
| 5.5*5.5*1.0 | Y | Y | Y | Y | Y | Y |
| 6.0*6.0*1.0 | Y | Y | Y | Y | Y | Y |
| 6.5*6.5*1.0 | Y | Y | Y | Y | Y | Y |
| 7.0*7.0*1.0 | Y | Y | Y | Y | Y | Y |
Product Tags:
|
|

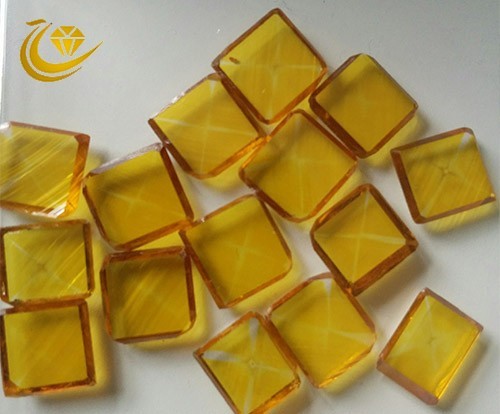

Yellow Large Synthetic Diamond For Metal Processing:Cast Iron Disc Grinding Images
|
